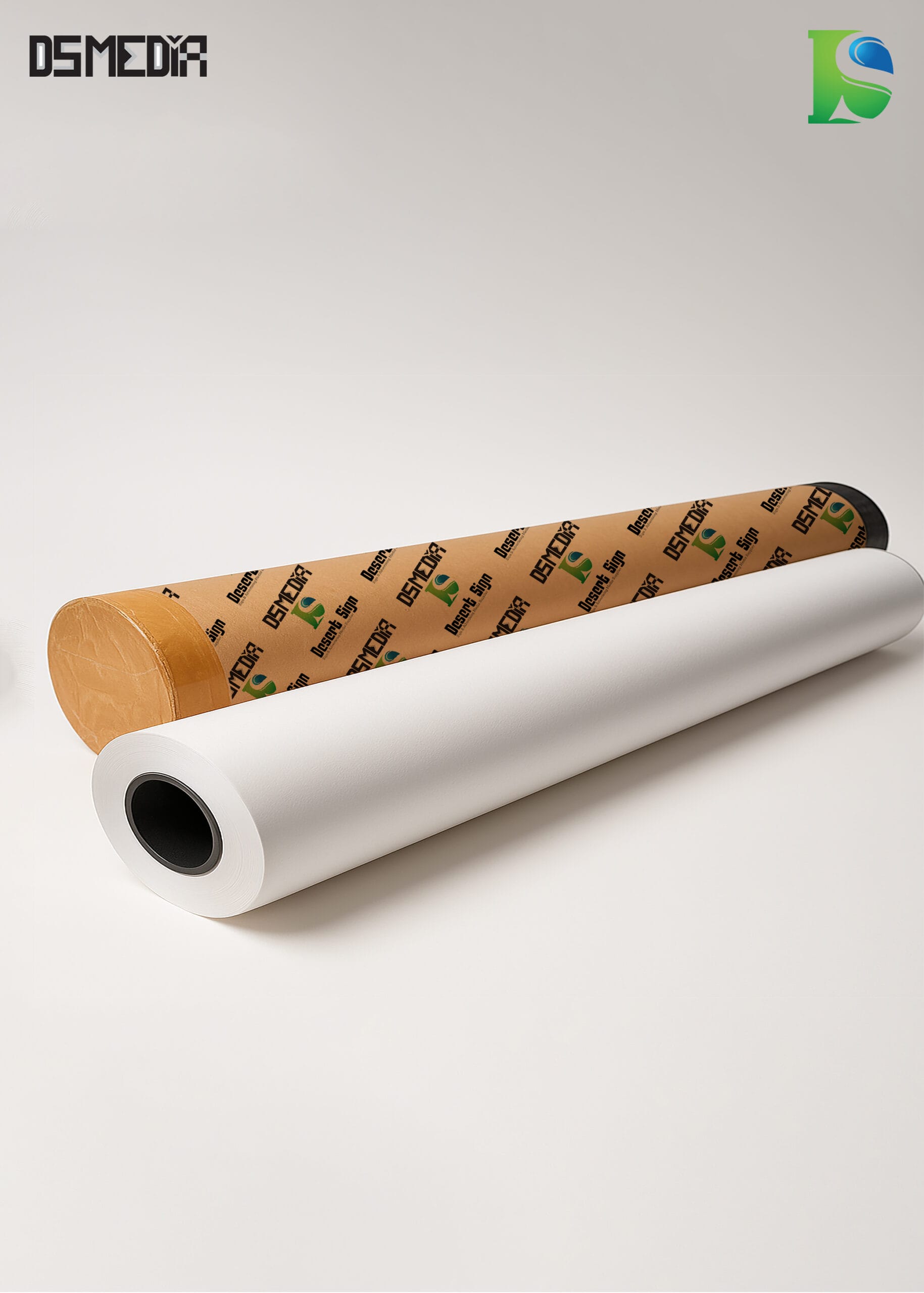

DSMEDIA Frontlit Whiteback 510 GSM
Price range: AED386.00 through AED1,050.00
(Vat Inclusive)
Shipping & Delivery
Description
| Item | Unit | Value | Test Method |
|---|---|---|---|
| Base Fabric | Denier | 1000DX1000D | (High tenacity yarn) 100%PES |
| Construction | Weaving/inch | 9×9 | / |
| Weight of fabric | Gsm/m2 | 87?5 | DIN53352 BS3424 Method5B |
| Weight of PVC | Gsm/m2 | 423?5 | DIN53352 BS3424 Method5B |
| Total weight | Gsm/m2 | 510?10 | DIN53352 BS3424 Method5A |
| Thickness | mm | 0.38?0.02 | DIN EN ISO 2286-3 |
| Width | cm | Up to 510 | / |
| Tensile Strength | N/5cm | Warp | 1350 Weft | 1150 | DIN53352 BS3424 |
| Tearing Strength | N | Warp | 160 Weft | 135 | DIN53356 BS3424 |
| Adhesion | N/5CM | 60 | DIN53357 BS3425 Method9B |
| Temperature Resistance | ? | ?20?70 | DIN53357 BS3425 Method10 |
| Lacquering | None | ||
| Flammability | We can achieve: 13501, B1, B2, NFPA701, etc. | ||
| LOW CADMIUM & HEAVY METALS | We can be applied for : Cadmium free (EN71-3) or Reach Compliance |
| Conclusions and Announcements |
|---|
| Declaration by Desert Sign: Please choose DS products suitably according to relative provisions or industrial standards. DS bears the responsibility for the specified technical and performance data on this page only. DS is not responsible for any other liability. (The technical data on this page is calculated on average, and ?5% tolerance is acceptable)Remarks: ?G? represents Glossy surface, ?M? represents Matte surface, Glossy or Matte could be made as requirements. |
