LED Module Supplier in Dubai | LED Modules for Signage & Illumination

An LED module is the core lighting component used inside fabricated channel letters, light boxes and illuminated signage panels across the UAE. As a trusted LED module supplier in Dubai, we provide fabrication-grade LED modules to sign makers, contractors and display builders who need reliable, consistent illumination that holds up to years of continuous operation in the region's demanding climate.

What Is an LED Module?

An LED module is a small, self-contained lighting unit consisting of one or more LED chips mounted on a compact circuit board, typically fitted with a lens to control the spread and direction of light. Modules are wired together in series or parallel strings and connected to a transformer, then mounted inside a channel letter, light box or signage panel to provide even, internal illumination.

Unlike a continuous LED strip, modules are designed as discrete points of light spaced along a wiring run, giving fabricators precise control over placement and brightness within letters, panels and other enclosed signage structures where a continuous strip would not fit or would not distribute light evenly.

How LED Modules Work in Signage Fabrication

Inside a channel letter or light box, LED modules are mounted to the back of the letter face or graphic panel, spaced at intervals calculated to avoid visible hot spots or dark patches once the sign is lit. The lens design on each module plays a major role here: a wider beam angle spreads light more broadly, allowing modules to be spaced further apart while still achieving even coverage, while a narrower beam angle concentrates light more directly, which can suit deeper letters or panels where light needs to travel further before diffusing.

Getting module spacing, lens angle and total module count right for a given letter size or panel depth is one of the most important technical decisions in illuminated sign fabrication, since it directly determines whether the finished sign looks evenly lit or patchy once installed and switched on.

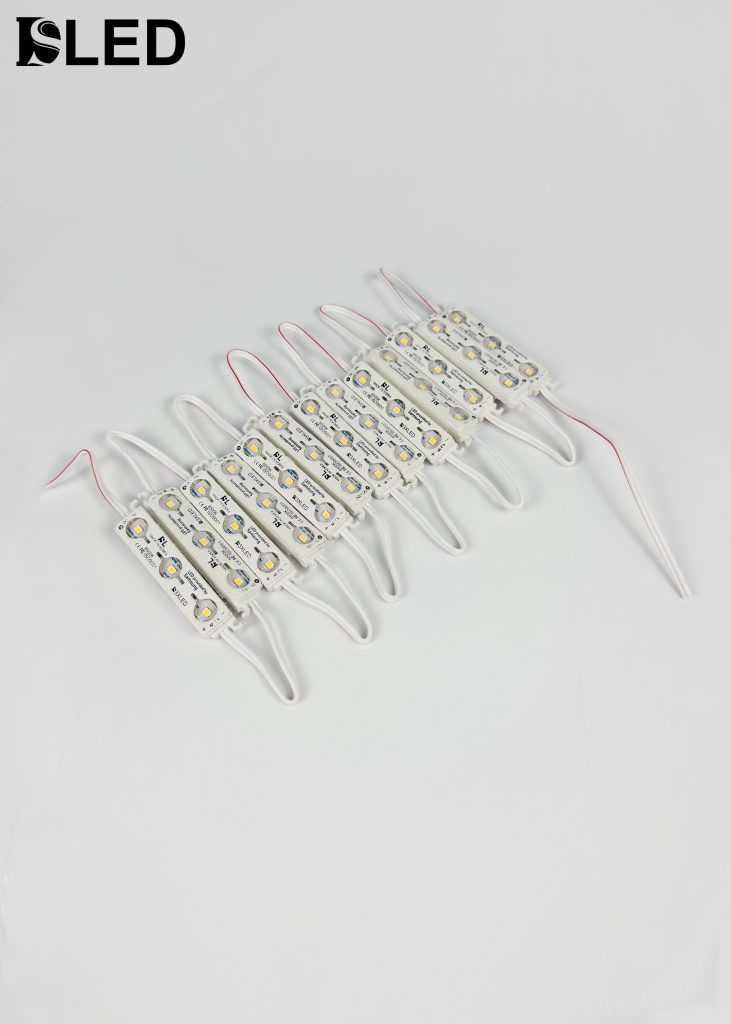

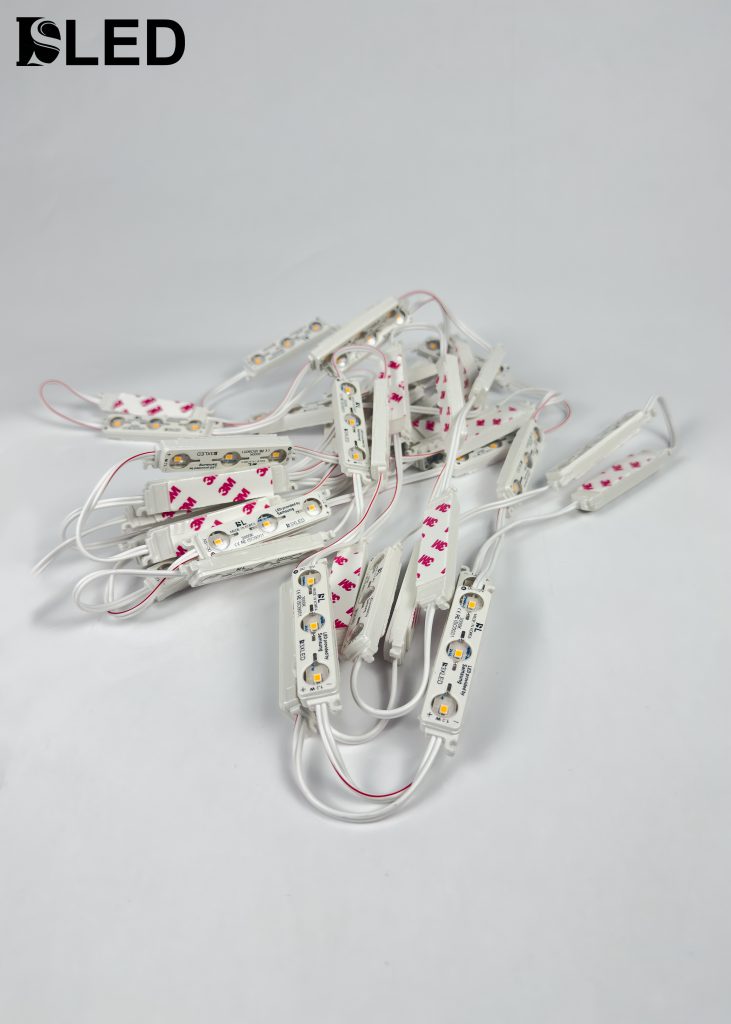

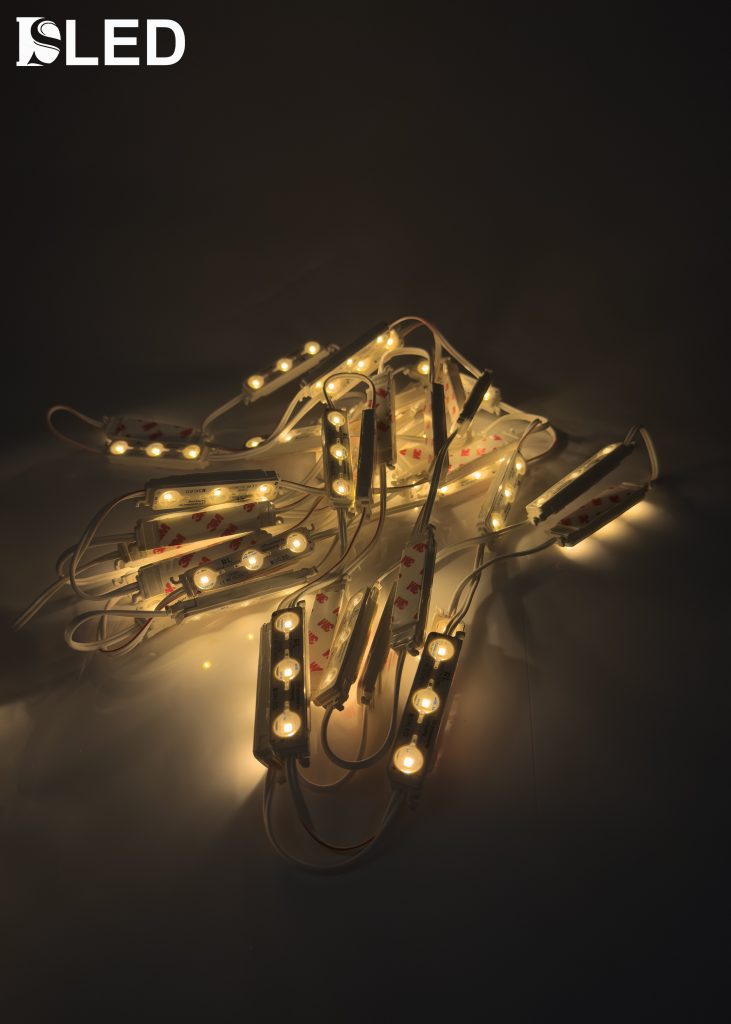

Featured LED Module: Cool White IP68 160° Frosted Lens

For fabrication projects that need dependable, wide-coverage illumination, our LED 2835 Module Cool White IP68 160° Frosted Lens combines several features that matter for professional signage work.

The 2835 chip type is a widely used, compact LED package known for consistent output and colour matching across large production runs, which matters when a sign maker needs every module in a multi-letter installation to look identical once lit. The cool white colour temperature gives a bright, crisp illumination suited to modern retail branding, corporate signage and any application where a clean, neutral white light is preferred over a warmer tone. The 160-degree beam angle provides wide light distribution, allowing fewer modules to achieve even coverage across a letter face or panel compared to a narrower-angle alternative, which can also reduce material cost on larger fabrication runs. And the frosted lens diffuses the light output further, softening the point-source appearance of the LED chip itself and helping to eliminate visible hot spots on the finished, lit sign face.

The IP68 rating is particularly important for UAE signage work, since it means the module is fully protected against dust ingress and can withstand sustained water exposure, making it a dependable choice for outdoor channel letters and illuminated signage exposed to heavy rain, high humidity and general outdoor weathering.

Why LED Module Selection Matters

Choosing the right LED module is not a minor specification detail; it has a direct, visible impact on the quality of the finished sign. Modules with poor colour consistency will produce a letter face with visible variation from one section to another. Modules with the wrong beam angle for the letter depth will create dark patches or overly concentrated bright spots. And modules without adequate IP ratings will fail prematurely when installed outdoors, leading to dead sections in a channel letter sign within months rather than years.

Sourcing modules from a supplier who understands these fabrication-specific requirements, rather than treating LED modules as a generic commodity component, is what separates a channel letter sign that looks professional for years from one that needs early repair or replacement.

Applications for LED Modules

Channel letter illumination. Modules remain the standard illumination method for fabricated 3D channel letters used in shopfront signage across UAE high streets and retail developments.

Light box panels. Larger light box displays use LED modules arranged in a grid pattern behind the graphic face to achieve even illumination across a wide surface area.

Illuminated signage panels. Building identification signs, directional signage and other flat illuminated panels use modules mounted behind the sign face for consistent backlighting.

Outdoor and exterior signage. IP-rated modules, such as our IP68 frosted lens option, are specifically suited to exterior installations exposed to UAE weather conditions, including intense summer heat and the region's occasional heavy rainfall.

Choosing the Right LED Module for Your Project

Selecting the correct module depends on several factors specific to the installation. Beam angle should be matched to letter or panel depth, with wider angles suiting shallower structures and narrower angles suiting deeper ones. Colour temperature should align with the intended brand appearance, whether that is a crisp cool white or a warmer tone. IP rating must be appropriate to the installation environment, with outdoor applications requiring a higher rating than indoor-only signage. Chip type and quality affect both brightness consistency and long-term colour stability across a multi-module installation.

Why Choose Us as Your LED Module Supplier

As an LED module supplier serving Dubai, Abu Dhabi and Sharjah, we stock fabrication-grade modules matched to the specific demands of professional sign making, from indoor light box applications through to fully weatherproofed outdoor channel letter installations. Sourcing your modules, transformers and related components from a single, consistent supplier helps ensure electrical compatibility across a project and simplifies specification for sign makers managing multiple fabrication jobs at once.

Whether you are fabricating a single shopfront sign or specifying components for a multi-location retail rollout, our LED module range gives you the reliability and consistency that professional illuminated signage demands.
