PRODUCT
Printhead	High Speed Mode	Standard Mode	High Quality Mode	Ink Color
KM 1024i-13PL 4/5/6/7/8Heads	540x720dpi 4pass 50sqm/h	540x1080dpi 6pass 40sqm/h	540x1440dpi 8pass 30sqm/h	● ● ● ●

Technical Specification
Print Control
Print Technology	KM1024i Print Head
Ink Type	UV Solvent / Flexible UV ink
Rip Software	Photoprint, Maintop
Color Configuration	8 Color (C / M / Y / K / LM / W / V)
Operating System	Win 7/10 64 bits
Image Format	TIFF / JPEG / EPS / PDF
Printhead Height	2 ~ 8mm Above Media Adjustable
Media Type	Vinyl, Flex, Polyester, Back-lit Film, Window Film, etc.
Media Type	Maximum Media Width 3,300mm (10.8ft)
Printing Width	3200mm, Maximum Print Width 3,200mm (10.5ft)
Maximum Weight System	Panel: ≤ 45 / m
Printing Drying System
UV Curing Lamp	UV Curing Lamp
Data Interface
Data Interface	Hi – Speed USB 2.0
Power Supply
Maximum Power	7.5KW
Access Parameter	AC220V, 50HZ / 60HZ
Working Conditions
Humidity	40% – 60%
Temperature	20℃ – 28℃
Specification
Machine Dimension / Weight	572010301480mm (LWH) NW : 970KG
Package Dimension / Weight	530011501700mm (LWH) GW : 1170KG

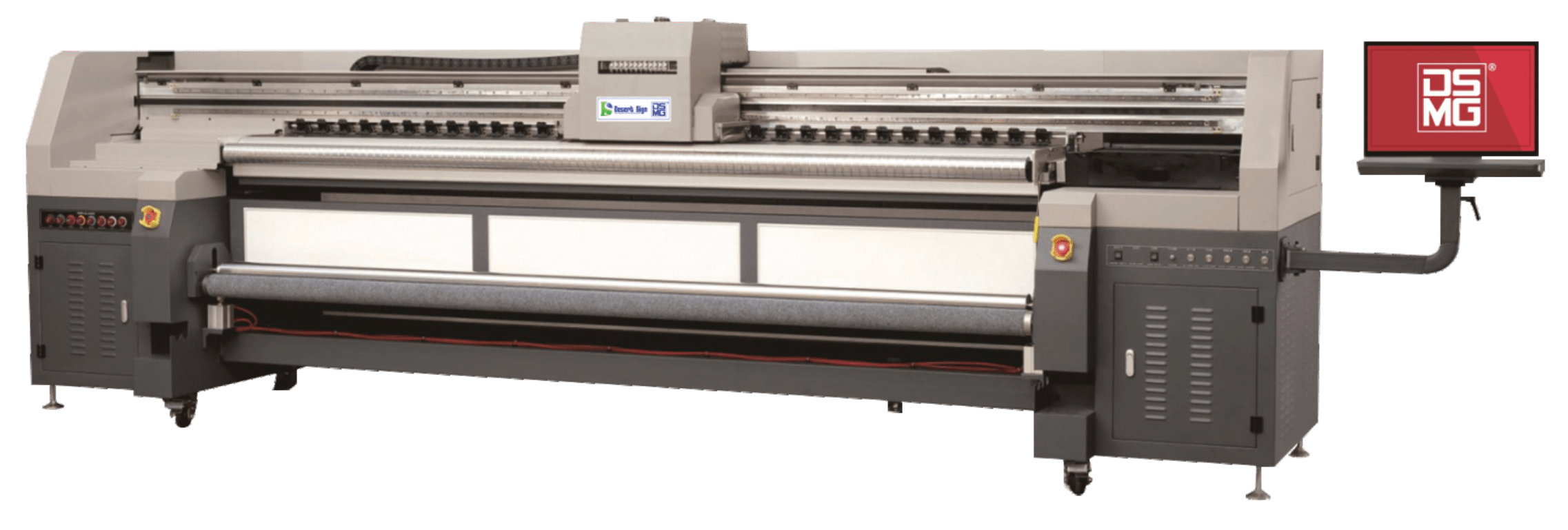

TAIMES T8UV High Speed Web UV Printer
