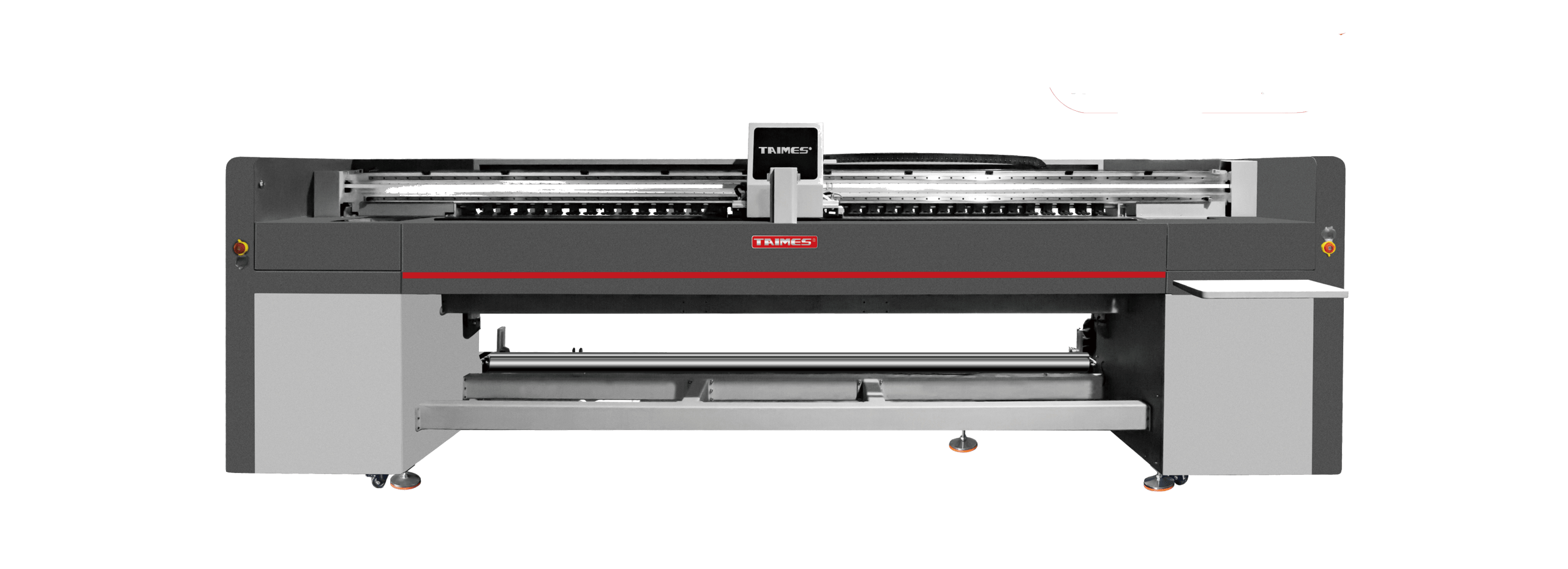

TAIMES T9UV 3.2m High-Precision UV Roll-to-Roll Printer
(Vat Inclusive)
Shipping & Delivery
Description
| PRINTHEAD | HIGH SPEED MODE | STANDARD MODE | HIGH-QUALITY MODE | INK COLOUR |
|---|---|---|---|---|
| KM1024A-6PL 8 Heads | 4 Pass 56 sqm/h | 6 pass 36 sqm/h | 8 pass 28 sqm/h | ● ● ● ● |
| KM1024i-13PL 8 Heads | 4 pass 45 sqm/h | 6 pass 30 sqm/h | 8 pass 23 sqm/h | ● ● ● ● |
| MACHINE DIMENSION / WEIGHT | L5000 X W1230 X H1530mm / NET WEIGHT 850 KGS | |||
| PACKAGE DIMENSION / WEIGHT | L5100 X W1080 X H1680mm / GROSS WEIGHT 950 KGS | |||
| TECHNICAL SPECIFICATIONS | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Printer | T9UV | |||||||||||||||||
| Colour Configuration | C / M / Y / K / W | |||||||||||||||||
| Print Technology | Industrial Piezoelectric Inkjet | |||||||||||||||||
| Print Head | KONICA 1024A-6PL | |||||||||||||||||
| Printhead Quantity | 8 Heads | |||||||||||||||||
| ||||||||||||||||||
| Max Printing Size | Maximum Print Width 3,200 mm | |||||||||||||||||
| Max Thickness | 10mm | |||||||||||||||||
| Max Printing Weight | ≤100kg/m | |||||||||||||||||
| Media Type | Any Soft Materials such as Soft Film, Backlit Film, Car Sticker, 3P Cloth, Coated Banner, Canvas, Light Box Cloth, One Way Vision Sticker | |||||||||||||||||
| Ink Type | LED-UV cold light curing lamp | |||||||||||||||||
| Curing System | LED Water Cooling System | |||||||||||||||||
| RIP Software | Photoprint | |||||||||||||||||
| Image Format | TIFF / JPEG / EPS / PDF | |||||||||||||||||
| Power Supply | >16A, 3.5KW / AC220V (±5%) / 50 / 60 HZ | |||||||||||||||||
| Size (L/W/H) | L5,000 × W1,230 × H1,530 mm | |||||||||||||||||
| Net Weight | 850 KG | |||||||||||||||||
