PRINTHEAD	HIGH SPEED MODE	STANDARD MODE	HIGH-QUALITY MODE	INK COLOUR
RICOH G5I-3.5PL W+Color+Varnish	720×600 dpi 4 pass 7.5 m²/h	720×900 dpi 6 pass 5.6 m²/h	720×1,200 dpi 8 pass 3.8 m²/h	● ● ● ● ● ● ●
RICOH G5I-3.5PL W+Color+Color	720×600 dpi 4 pass 13 m²/h	720×900 dpi 6 pass 8 m²/h	720×1,200 dpi 8 pass 6 m²/h	● ● ● ● ● ●
RICOH GEN5-7PL 3/4 Heads	720×600 dpi 4 pass 14 m²/h	720×900 dpi 6 pass 10 m²/h	720×1,200 dpi 8 pass 6 m²/h	● ● ● ● ●

Technical Parameter
Print Technology	Industrial Piezoelectric Inkjet
Ink Type	Environmentally Protective UV Ink
RIP Software	Photoprint / Maintop / Printer Factory / ColorGate
Colour Configuration	4 Color / 6 Color / White / Varnish
Operating System	Win 7 / 10 / 11 64 Bits
Image Format	TIF / JPEG / EPS / PDF
Printhead Height	Above Media Adjustable 2–85 mm
Printing Materials	Wooden Panels, Aluminum Panels, Door Panels, Cardboard, PVC Expansion Panels, Roof Panels, Glass, Ceramics, Acrylic, PVC, etc.
Print Width	1,800×1,000 mm
Max Weight of Material	≤ 80 kg/m
UV Curing Lamp	LED Water Cooling System
Data Interface	Hi-Speed USB 3.0
Maximum Power	>204; 4.5 kW
Access Parameter	AC220V (±5%) 50Hz/60Hz
Humidity	35–80% RH (No Condensing)
Temperature	25–32°C or more Recommended No Frost
Machine Dimension / Net Weight	L2,610×W2,380×H1,500 mm / Net Weight 580 KG
Package Dimension / Gross Weight	L2,860×W2,460×H1,880 mm / Gross Weight 720 KG

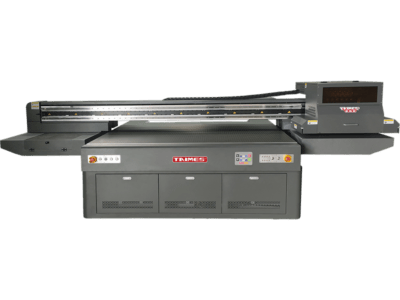

TAIMES TF1810 High-Performance UV Flatbed Printer
