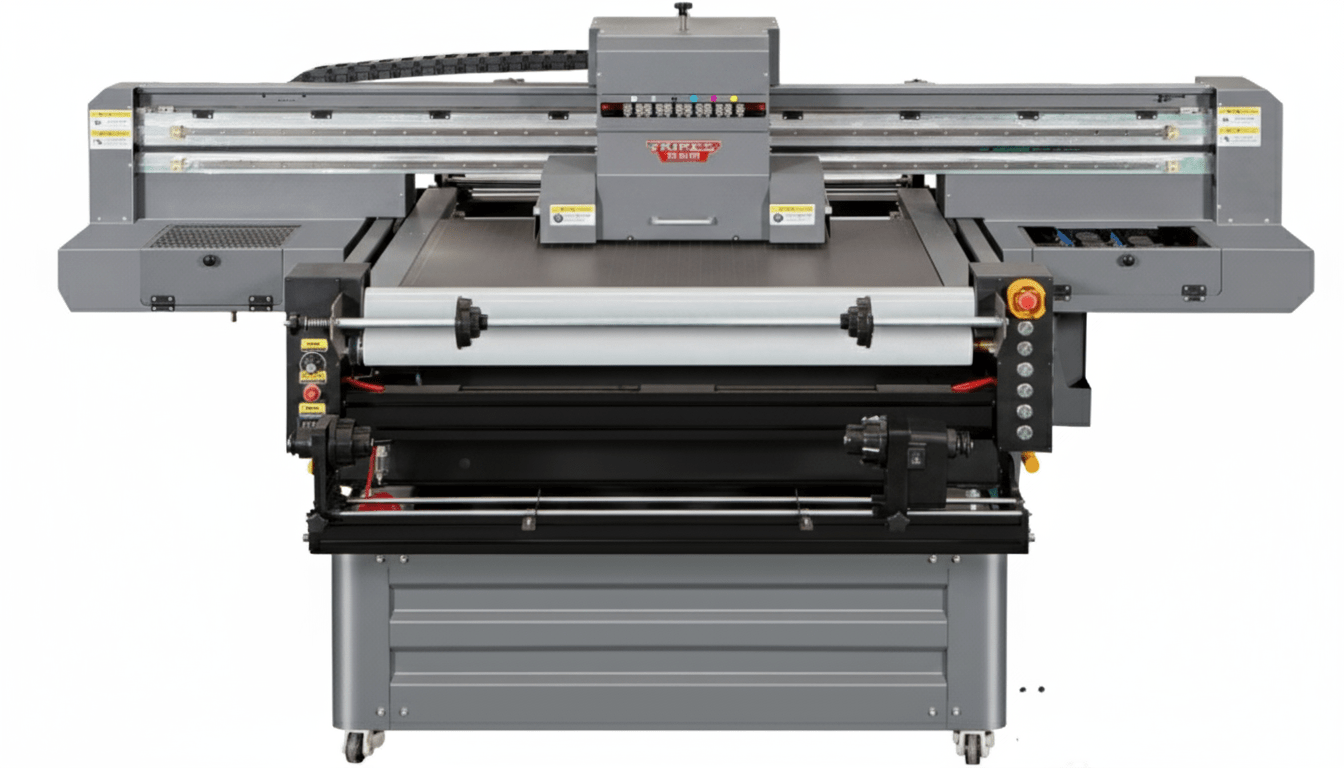

TAIMES X9060 PRO Full-Featured UV Flatbed Printer
(Vat Inclusive)
Shipping & Delivery
Description
| Printhead | High Speed Mode | Standard Mode | High Quality Mode | Ink Color |
|---|---|---|---|---|
| EPSON i3200 2/3/4 Heads | 720*600 dpi 4pass 18 sqm/h | 720*900 dpi 6pass 12 sqm/h | 720*1200 dpi 8pass 8 sqm/h | ● ● ● ● ● ● ○ ○ ● |
| Technical Specification | |
|---|---|
| Print Control | |
| Print Technology | Industrial piezoelectric inkjet |
| Ink Type | Environmentally protective UV ink |
| Rip Software | Photoprint, Maintop, Printer Factory, Colorgate, Onyx |
| Color Configuration | CMYK+LC+LM+LY+W+V |
| Operating System | Win10/11/12 64bits |
| Image Format | TIFF/JPEG/EPS/PDF |
| Printhead Height | 2~85mm Adjustable height |
| Printing Materials | UV DTF, Coiled material, Wooden panels, Aluminum panels, Door panels, Cardboard, PVC expansion panel, ceiling panel, Glass, Ceramics, Acrylic, PVC etc. |
| Media specifications | Panel: 940mm(width) * 640mm(depth) |
| Print Size | Panel: 900mm(width) * 600mm(depth) |
| Medium Weight Limit | Panel: $\leq$45kg/m |
| Drying System | LED Water Cooling System |
| Data Interface | Hi-Speed USB 3.0 Gigabit NIC port transmission |
| Power Supply | $\geq$15A, 3.5KM; AC220V ($\pm$5%), 50HZ/60HZ |
| Working Conditions | HUM: $35^\circ$ $\sim$ $80^\circ$ RH; TEM: $25^\circ$ $\sim$ $32^\circ$C |
| Machine Dimension/Weight | L2818* W1175* H1380* 488KGS |
| Package Dimension/Weight | L2960* W1300* H1210* 550KGS |
